HYP060 Hypoid Hollow Rotary Table
ANDANTEX HYP060 is a hollow rotary table with a side input arrangement.
The open center provides a route for cables and pneumatic lines, while the side input gives another option for positioning the motor within the machine. Use the mounting drawing to plan the rotary fixture and surrounding clearance. Confirm the drive configuration against the required accuracy, load and cycle.
Key Technical Specifications
| Item | Parameters | Description |
|---|---|---|
| Product Series | HYP Hypoid Hollow Rotary Table | Cam Hollow Rotary Table |
| Specifications / Frame Size | 060 | Model Specifications |
Need a specification that is not listed? Contact us with the required configuration.
Find HYP060 drawings by motor interface
Select the motor interface and reduction stage to find the matching drawing and STEP model.
Enter the motor shaft diameter, pilot diameter and mounting-hole spacing to compare input interfaces across models.
Match your motor dimensions
Filter by motor type, reduction stage and mounting dimensions. Open the available files, or request the format you need.
HYP060 drawings and STEP models

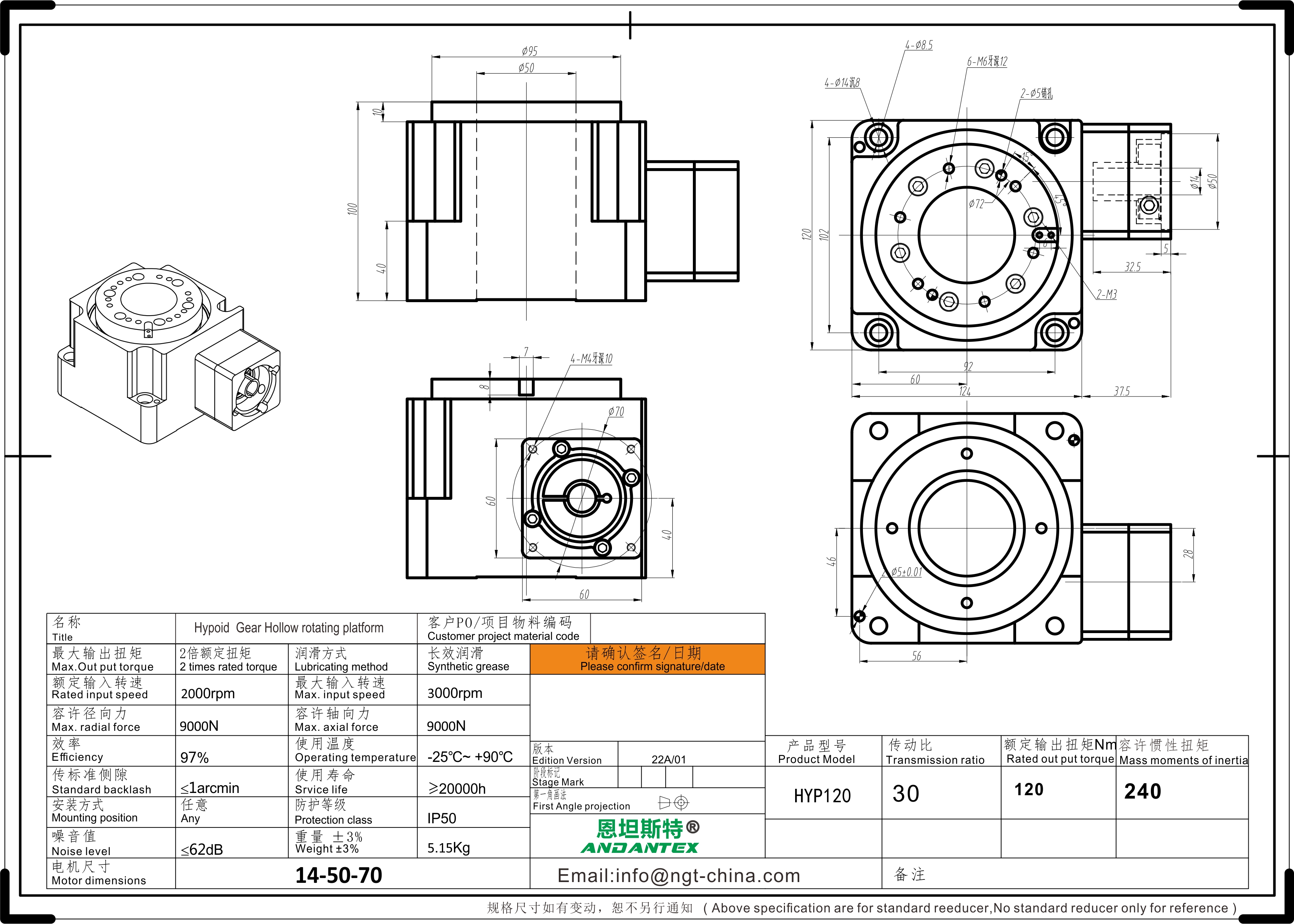

Choose your configuration below. Use the 2D drawing to check dimensions and the STEP model to check fit in your assembly.
Check the configuration before downloading
Match the model, reduction stage and motor interface to the drawing. Custom input or output dimensions require a separate set of files.
Selection FAQ
HYP060 Can I Order by Model Number Alone?
First confirm the gear ratio, Load, Output Speed, Mounting orientation and motor interface. The same frame size may have different interfaces and configurations.
Drawings and 3D How to Confirm Models?
Find resources on this page or in the Download Center, Confirm the final version against the motor interface and machine mounting dimensions.
What If My Specifications Are Incomplete?
Provide the Motor Model, Load, Target Speed, Required Torque, Cycle Time & Installation Space, Our engineers can help confirm the requirements.
Need help selecting a gearbox?
Send the required ratio, motor drawing, load and installation details for HYP060.
