ANDANTEX PLX060-35-S2-P0 High Precision Helical Gear Series Planetary Gearboxes in Robotics Equipment

Short Description:

Product name: High precision series planetary reducer

Item No.: PLX060

Specification range: 64-120

Speed ratio range: 4-100

Precision range: Precision range

Warranty: Two years

Send email to us

Product Detail

Product Tags

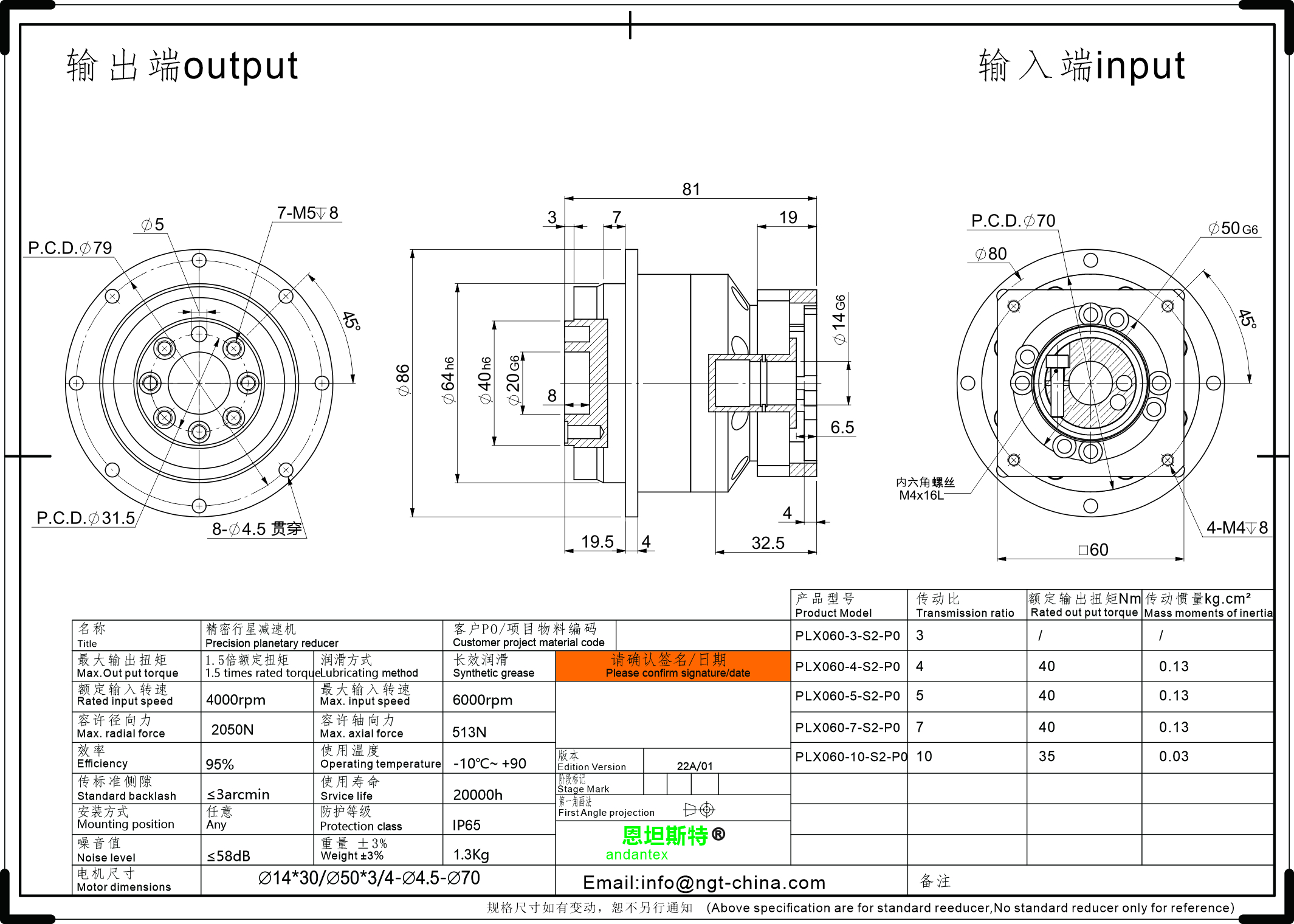

Specification

ANDANTEX PLX060-35-S2-P0 High Precision Helical Gear Series Planetary Gearboxes in Robotics Equipment-01 (6)

Features

ANDANTEX PLX060-35-S2-P0 High Precision Helical Gear Series Planetary Gearboxes in Robotics Equipment-01 (4)

1. High precision: High precision helical gear transmission mechanism is adopted, with a precision of 1-3 arc minutes, which can meet the requirements of high precision transmission.

2. Unique flange output mode: The output end uses flange output mode, which has large output torque and rigidity, and is convenient to use with various mechanical equipment.

3. High-torque heavy load: It can withstand large loads, and the maximum torque can reach 2850N-m, which is suitable for various applications requiring high-power output.

4. Low noise: High quality materials and advanced technology are used to ensure low noise and smooth operation of the planetary reducer.

Applications

PLX060 series high-precision unique flange output way planetary reducer can be very suitable for application scenarios such as robots. Because robots are characterized by high speed and repeatability, they need high precision and stable gearboxes to ensure their motion accuracy and reliability. PLX060 series planetary gearboxes with flange output form can provide higher output torque and instantaneous rigidity, while ensuring higher output accuracy and reliability. In addition, the lightweight design of this series of reducers is also ideal for application scenarios such as robotics, which can reduce the load and energy consumption of robots and improve their efficiency and performance. Therefore, the PLX060 series high-precision planetary gearboxes are for high-end applications such as robotics.
