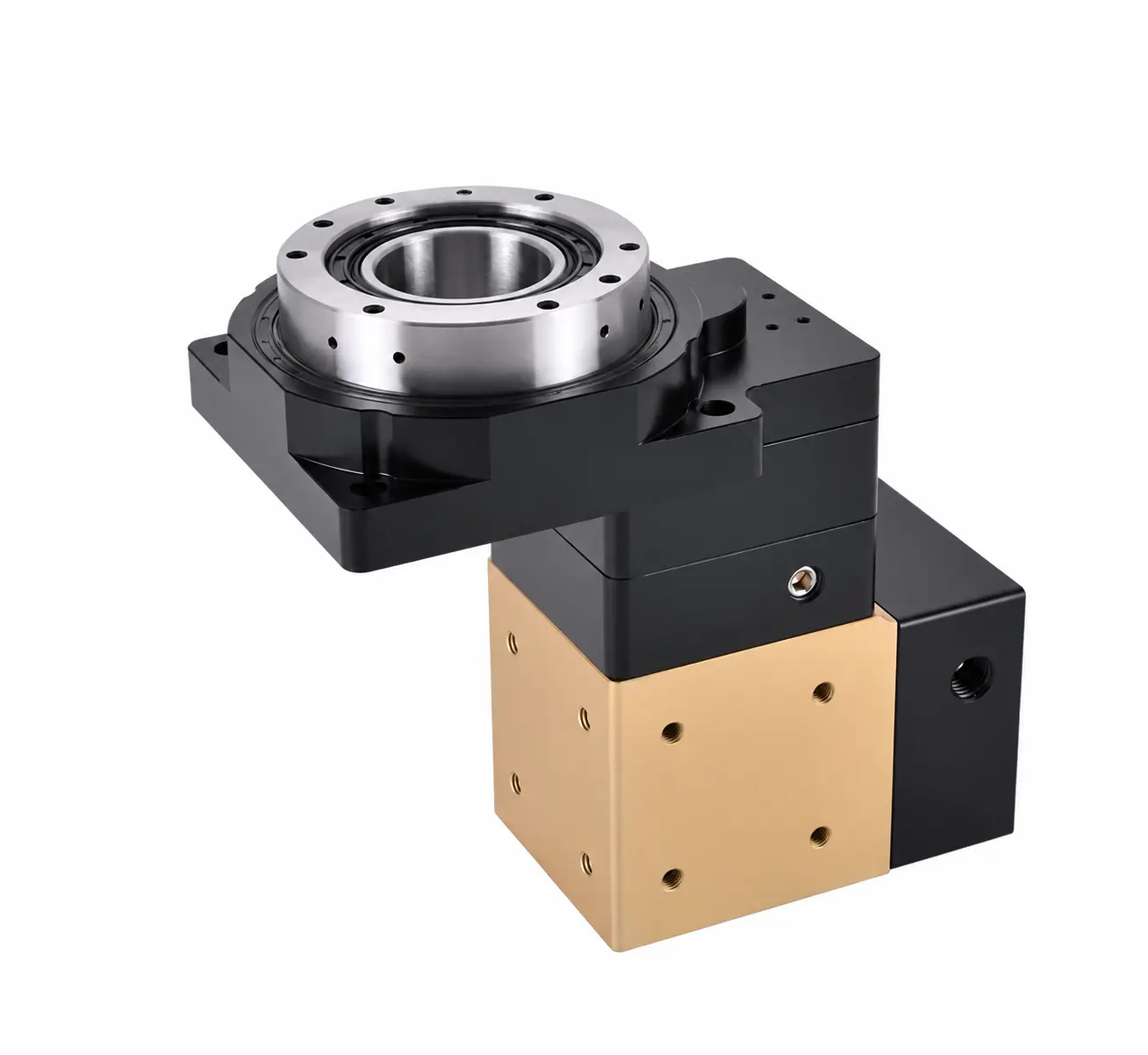

NT465 Hollow Rotary Table | with PAG140 Planetary Gearbox
The ANDANTEX NT465 hollow rotary table combines a 300 mm through bore, cross roller bearing and 10:1 table reduction with a PAG140 L1 planetary gearbox.
Two documented configurations support 3000 W servo motors: M1 with a 35 mm input bore and M2 with a 42 mm input bore. Both use a 114.3 mm pilot, 200 mm mounting pitch circle and four M12 mounting threads. Compare the dimensional drawings and STEP models to check integration with your rotary positioning equipment.
Key Technical Specifications
| Item | Parameters | Description |
|---|---|---|
| Product Series | NT Standard Hollow Rotary Table | Hollow Rotary Table |
| Specifications / Frame Size | 465 | Model Specifications |
| Output Structure / Flange Type | Hollow rotary flange; 300 mm through bore | 465 mm table body; refer to drawings for all mounting dimensions. |
| Compatible Motor Power | 3000 W | Both supplied M1 and M2 configurations. |
| Example Model | NT465-10-F-PAG140-L1-M1 | 35-114.3-200-M12 input interface. |
| Gear Ratio | 10:1 table; PAG140 L1: 3, 4, 5, 7, 10 | Table ratio and gearbox ratio are separate; confirm the selected assembly ratio. |
| Rated Output Torque | 415 N·m | Allowable torque of the rotary table, as stated on the drawing. |
| Maximum Torque | 767 N·m | Maximum allowable torque of the rotary table. |
| Operating Temperature | -25 to +90 °C | Per supplied drawing. |
| Maximum Axial Force | 15000 N | Allowable axial load of the rotary table. |
| Weight | 52 kg table; 15 kg gearbox | Separate component weights shown on the supplied drawing. |
| Bearing Type | Cross roller bearing | Rotary table bearing. |
| Positioning Accuracy | ≤1 arcmin | Rotary table positioning accuracy. |
| Positioning Repeatability | ≤10 arcsec | Rotary table repeatability. |
| Typical Interface | M1: 35-114.3-200-M12; M2: 42-114.3-200-M12 | Input bore, pilot and pitch-circle dimensions in mm. |
| IP Rating | IP50 | Per supplied drawing. |
| Service Life | 20000 h | Intermittent operation, as specified in the drawing. |
Unlisted Specifications Are Pending, Confirm for the Specific Configuration.
