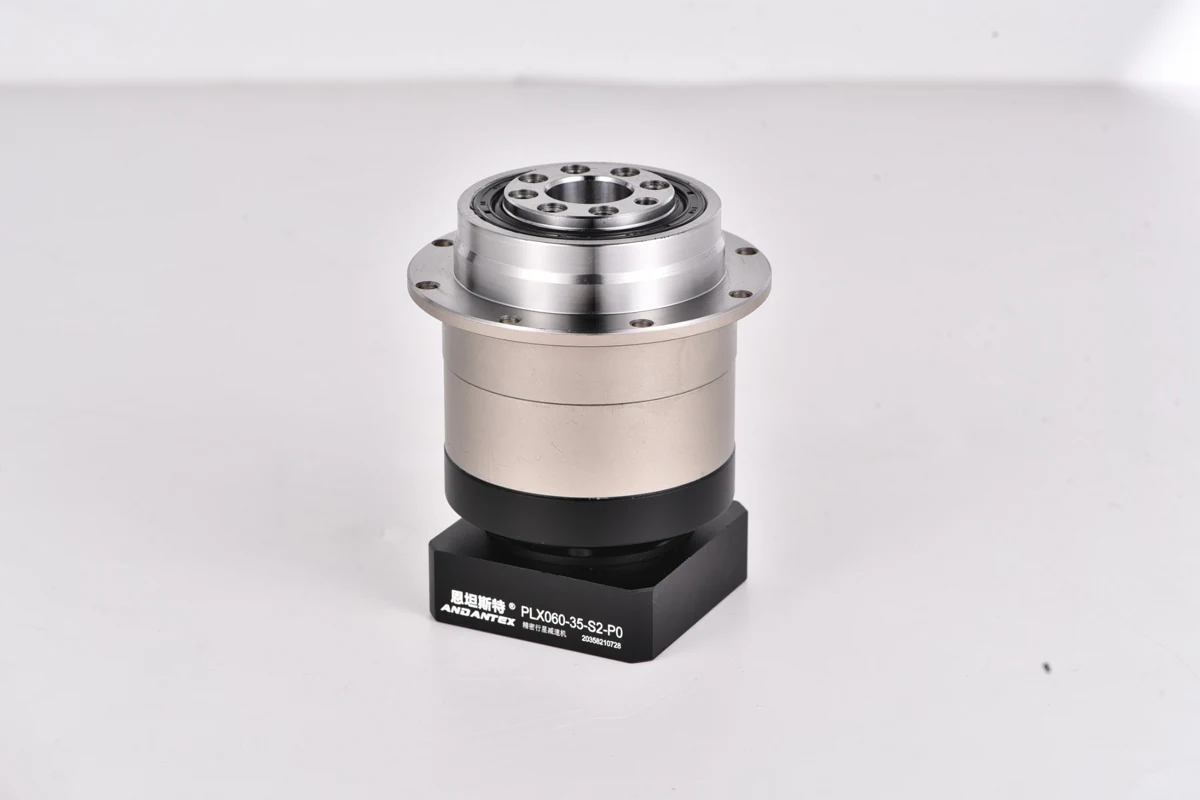

PLX090 Flange-Output Planetary Gearbox | for Rack-and-Pinion Drives

The ANDANTEX PLX090 is a disc-flange-output planetary gearbox for rack-and-pinion drive applications.

ANDANTEX PRODUCT

Select an L1 or L2 configuration and match the motor shaft diameter, locating register and mounting PCD using the corresponding dimensional drawing. Published rated output torque is 80-125 Nm, depending on ratio and configuration. Interface-specific loads and dimensions must be checked against the selected drawing.

PLX090 Product Model
PLX Disc-Flange Output Gearbox Product Series
PLX090-40-S2-P0 Example Model
L1: 4, 5, 7, 10; L2: 20, 25, 28, 35, 40, 50, 70, 100 Gear Ratio
80-125 Nm Rated Output Torque
L1: <=3 arcmin; L2: <=5 or <=7 arcmin Backlash
4100 N Maximum Radial Force
6000 rpm Maximum Input Speed
L1: 95%; L2: 90% Efficiency

Key Technical Specifications

AND-PD-PLX090-084 Technical Data SheetPLX Disc-Flange Output GearboxPrecision Planetary Gearbox
ItemParametersDescription
Product SeriesPLX Disc-Flange Output GearboxPrecision Planetary Gearbox
Specifications / Frame Size090Model Specifications
Output Structure / Flange TypeDisc-flange output; rotating flange diameter 63 mmOutput fastening PCD 50 mm, 7 x M6 depth 12 mm and one 6 mm locating hole. Housing register 90 mm; mounting PCD 109 mm with 8 x 5.5 mm through holes.
Confirmed Typical ApplicationsRack-and-pinion drives—
Example ModelPLX090-40-S2-P0Helical Disc-Flange Output
Gear RatioL1: 4, 5, 7, 10; L2: 20, 25, 28, 35, 40, 50, 70, 100Only ratios with documented rated torque are listed; confirm the selected interface.
Rated Output Torque80-125 NmL1: 4 = 120 Nm; 5/7 = 125 Nm; 10 = 80 Nm. L2: 20/28 = 120 Nm; 25/35/40/50/70 = 125 Nm; 100 = 80 Nm.
Maximum Torque1.5 x rated torque—
BacklashL1: <=3 arcmin; L2: <=5 or <=7 arcminL2 14-73-98.4 drawing specifies <=7 arcmin; L2 19-70-90 and 19-80-100 specify <=5 arcmin.
Maximum Input Speed6000 rpmMaximum input speed; confirm duty cycle.
Rated Speed3000 rpmRated input speed.
EfficiencyL1: 95%; L2: 90%—
Operating Temperature-10 to +90 C—
Maximum Axial Force1025 N—
Maximum Radial Force4100 NConfirm the selected configuration.
Torsional Rigidity31 Nm/arcminOfficial Website Data
WeightL1: 3.4 kg; L2: 4.7 kgDrawing values, tolerance +/-3%.
Typical Interface14-73-98.4; 19-70-90; 19-80-100Notation: input shaft diameter - motor locating register - motor mounting PCD, in mm.
IP RatingIP65—
Service Life20000 hDrawing-stated service life; actual life depends on operating conditions.

Need a specification that is not listed? Contact us with the required configuration.

MOTOR INTERFACE FINDER

Find PLX090 drawings by motor interface

Select the motor interface and reduction stage to find the matching drawing and STEP model.

QUICK MATCH

Match your motor dimensions

Filter by motor type, reduction stage and mounting dimensions. Open the available files, or request the format you need.

Select Interface ResourcesAfter Publishing Engineering Resources, Filter by Actual Motor Dimensions.
Check the motor drawing for shaft diameter and length, keyway, pilot diameter, mounting hole spacing, threads and flange thickness.
ENGINEERING FILES

PLX090 drawings and STEP models

Choose your configuration below. Use the 2D drawing to check dimensions and the STEP model to check fit in your assembly.

0 2D + 3D File
0 Interface / Stage Combinations
0 Complete Resource Set
Loading Resources…Choose a configuration to review the available files.
No matching configuration? Submit your motor drawing
DOWNLOAD CHECK

Check the configuration before downloading

Match the model, reduction stage and motor interface to the drawing. Custom input or output dimensions require a separate set of files.

Request Engineering Review
FAQ

Selection FAQ

Select PLX090 What Is Commonly Overlooked When Selecting a Precision Planetary Gearbox?

Input interfaces and dynamic operating conditions are easily overlooked. In addition to gear ratio and rated torque, Check motor shaft dimensions as well, Pilot Diameter, Hole Spacing, Acceleration & Deceleration Time, Inertia & Offset Loads.

Can the Interface Be Customized for Other Motor Brands?

Confirm the shaft diameter against the motor drawing, Shaft Length, Pilot Diameter, Key dimensions including mounting hole spacing, Then determine the input flange and bushing configuration.

Need help selecting a gearbox?

Send the required ratio, motor drawing, load and installation details for PLX090.

Generate RFQ
2D DRAWING PREVIEW

PLX090 Mounting Dimensions

PLX090 2D Mounting Drawing Preview
