ANDANTEX PLX090-40-S2-P0 high precision helical gear series planetary gearbox in CNC machine tool equipment

Short Description:

Product name: High precision series planetary reducer

Item No.: PLX090

Specification range: 64-120

Speed ratio range: 4-100

Precision range: 3arcmin

Warranty: Two years

Send email to us

Product Detail

Product Tags

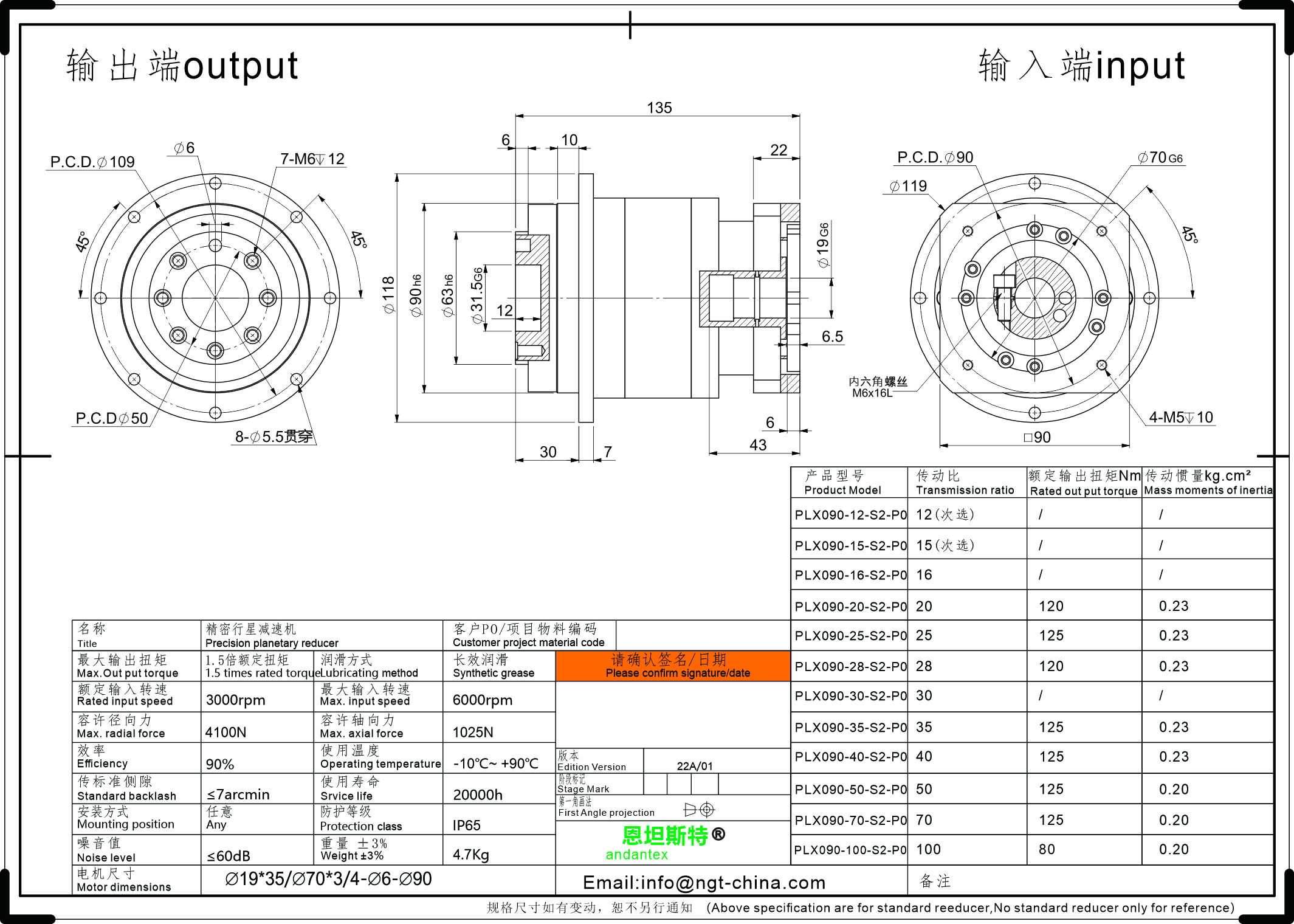

Specification

ANDANTEX PLX090-40-S2-P0 high precision helical gear series planetary gearbox in CNC machine tool equipment-01 (5)

Features

ANDANTEX PLX090-40-S2-P0 high precision helical gear series planetary gearbox in CNC machine tool equipment-01 (3)

1. High precision: The overlapping gear design can reduce transmission error and improve transmission precision, and the precision level can reach grade 3.

2. The output mode can realize the connection with various motors, reducers, robots and other equipment, with good versatility.

3. Adopting star wheel as the power output device, it has high transmission efficiency and large output torque.

4. High efficiency: Adopting advanced gear reduction technology, the transmission efficiency is more than 97%.

5. Light and compact: small size, light weight, compact structure, easy to install and maintain.

6. High reliability: Adopting high quality materials and advanced process technology, with high reliability and stability.

Applications

1. High precision, with newly designed tooth shape, which improves the transmission precision and makes the output error reduced to the minimum, suitable for use in CNC machine tools with high requirements for precision. High load capacity, the use of high-strength gear material makes its load capacity far more than the traditional reducer, and can be applied to CNC machine tools with large workload.

2. High efficiency, using the optimized design of gear combination, with higher transmission efficiency, making its output torque greater, while the power loss is smaller. Very stable, using high quality materials, with high rigidity and durability, with better stability under severe working conditions such as high speed and high load.
