PRECISION DRIVE
Gearbox and Motion Product Catalog
Browse series and models by product category, Review technical specifications, motor interfaces and engineering drawings.
Product Category
Standard Planetary Gearbox
7 series
PLF060 example
- Backlash
- L1 ≤8 arcmin；L2 ≤12 arcmin
- Rated Output Torque
- 16–40 Nm( By Ratio)
Precision Planetary Gearbox
8 series
PAG060 example
- Backlash
- L1: ≤3 or ≤5 arcmin; L2: ≤5 or ≤7 arcmin
- Rated Output Torque
- 30–45 Nm
Hollow Rotary Table
3 series
NT085 example
- Rated Torque
- 10 Nm
- Positioning Repeatability
- ≤10 arcsec
Right Angle Gearbox
9 series
PVFG040 example
- Backlash
- L1: ≤5 arcmin; L2: ≤8 arcmin
- Rated Output Torque
- 18–23 Nm

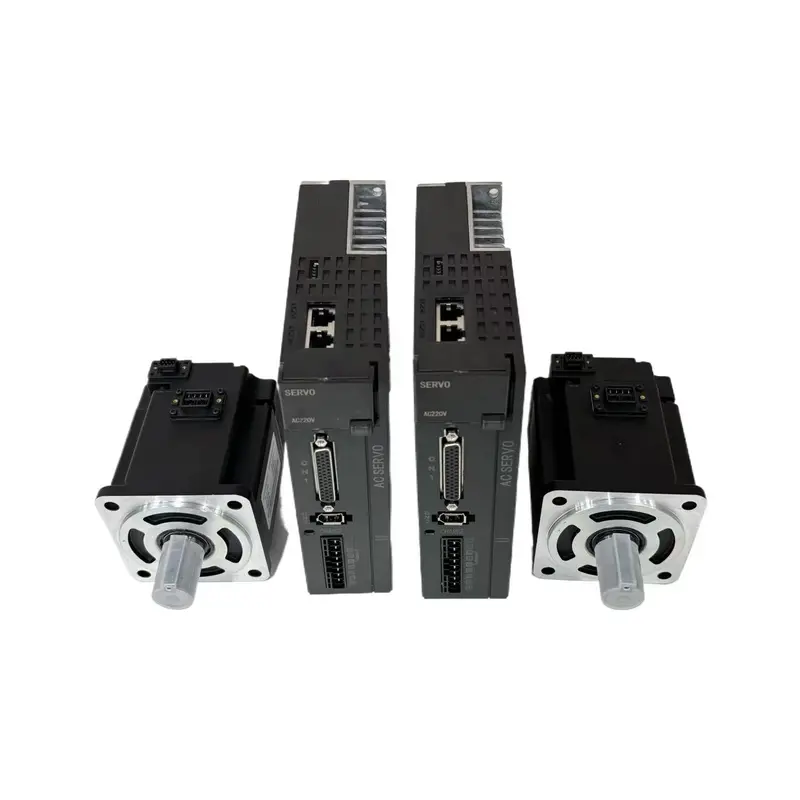

AC Servo Motor
3 series
100W 40 Flange 3000RPM 0.3NM example
- Rated Power
- 100W
- Rated Speed
- 3000 rpm
Cam Hollow Rotary Table
3 series
HTM105 example
- Bearing Type
- Cam roller bearing structure
- Frame code
- 105
Harmonic Reducer
3 series
CS8 example
- Backlash
- ≤40 arcsec
- Rated Output Torque
- 1.8–2.4 Nm
Worm Gearbox
1 series
NMRV025 example
- Frame code
- 025
Specifications shown are for the named example model. Open a series for configuration-specific data.
