AT075-FL1 Single-Shaft Output Right-Angle Gearbox

Name: AT075-FL1 Single-Shaft Output Right-Angle Gearbox
Brand: ANDANTEX
SKU: AT075-FL1

AT075-FL1 is a single-shaft output right-angle gearbox for compact automation drive layouts.

ANDANTEX PRODUCT

The referenced L1, 1:1 configuration has a 16 mm keyed input shaft, a 16 mm keyed output shaft and 45 Nm rated output torque. Other supplied stages use motor-bore input interfaces and different ratings. Select the stage and interface drawing before matching your motor, load and installation space. Request a quotation with the required ratio, motor dimensions and operating duty.

Submit Selection Requirements View All Sizes in This Series

AT075-FL1 Product Model

AT-FL1 Hollow Input & Single Shaft Output Product Series

1:1 (L1 reference) Gear Ratio

45 Nm Rated Output Torque

≤6 arcmin Backlash

1100 N Maximum Radial Force

6000 rpm Maximum Input Speed

≥97% Efficiency

Key Technical Specifications

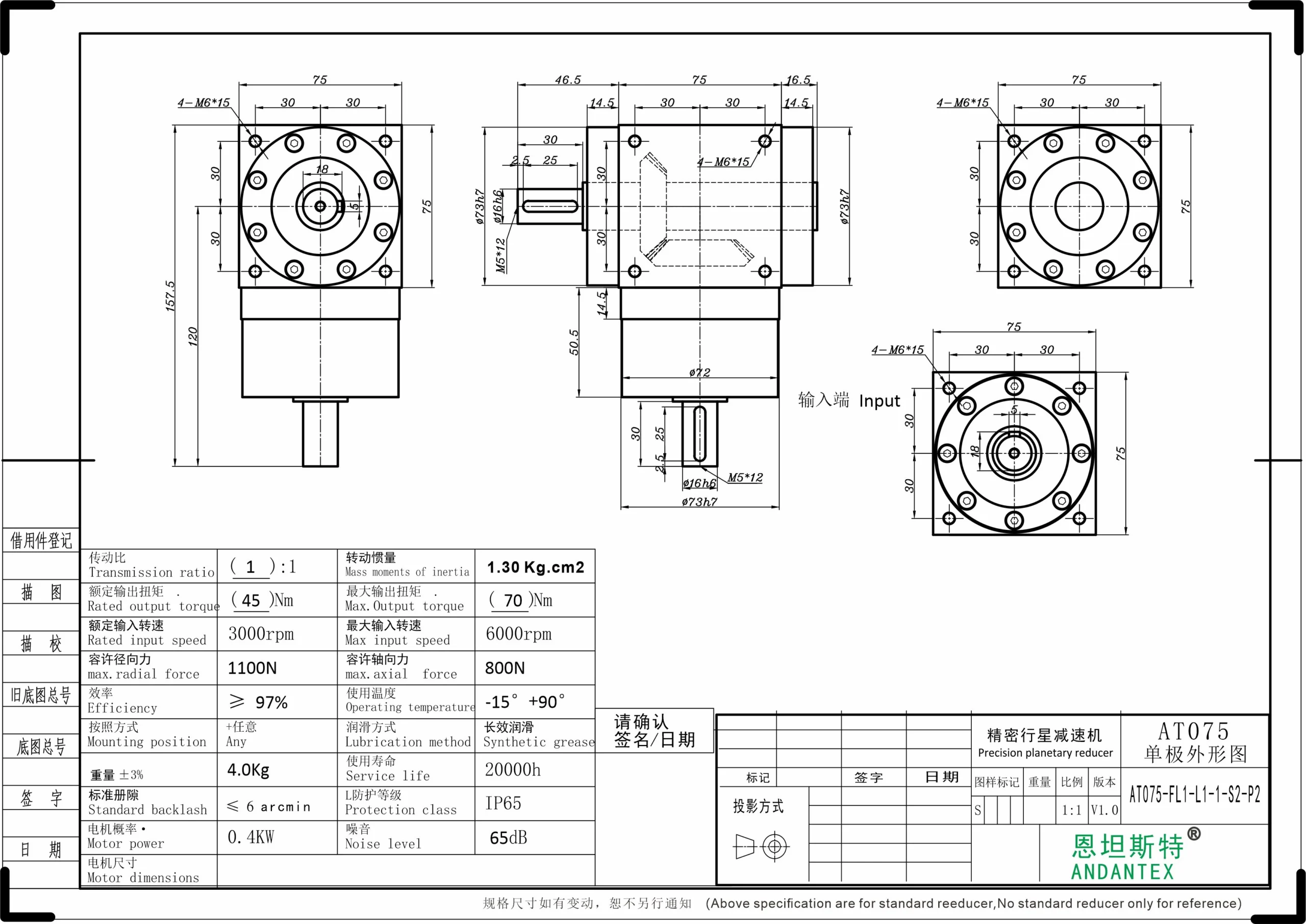

AT075-FL1-L1-1-S2-P2.jpg Technical Data SheetAT-FL1 Hollow Input & Single Shaft OutputRight Angle Gearbox

Item	Parameters	Description
Product Series	AT-FL1 Hollow Input & Single Shaft Output	Right Angle Gearbox
Specifications / Frame Size	075	Model Specifications
Output Structure / Flange Type	Single keyed output shaft at 90 degrees to the input	FL1 single-shaft output configuration; input structure and mounting interface vary by stage.
Gear Ratio	1:1 (L1 reference)	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Rated Output Torque	45 Nm	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Maximum Torque	70 Nm	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Backlash	≤6 arcmin	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Maximum Input Speed	6000 rpm	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Rated Speed	3000 rpm input	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Efficiency	≥97%	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Operating Temperature	-15 to +90 °C	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Maximum Axial Force	800 N	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Maximum Radial Force	1100 N	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Weight	4 kg ±3%	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Typical Interface	L1 keyed input shaft Ø16 h6; pilot Ø73 h7	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
IP Rating	IP65	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.
Service Life	20,000 h	Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings.

Unlisted Specifications Are Pending, Confirm for the Specific Configuration.
