AT090-FL1 Single-Shaft Output Right-Angle Gearbox
AT090-FL1 is a single-shaft output right-angle gearbox for compact automation drive layouts.
The referenced L1, 1:1 configuration has a 18 mm keyed input shaft, a 18 mm keyed output shaft and 78 Nm rated output torque. Other supplied stages use motor-bore input interfaces and different ratings. Select the stage and interface drawing before matching your motor, load and installation space. Request a quotation with the required ratio, motor dimensions and operating duty.
Key Technical Specifications
| Item | Parameters | Description |
|---|---|---|
| Product Series | AT-FL1 Hollow Input & Single Shaft Output | Right Angle Gearbox |
| Specifications / Frame Size | 090 | Model Specifications |
| Output Structure / Flange Type | Single keyed output shaft at 90 degrees to the input | FL1 single-shaft output configuration; input structure and mounting interface vary by stage. |
| Gear Ratio | 1:1 (L1 reference) | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Rated Output Torque | 78 Nm | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Maximum Torque | 120 Nm | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Backlash | ≤6 arcmin | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Maximum Input Speed | 6000 rpm | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Rated Speed | 3000 rpm input | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Efficiency | ≥97% | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Operating Temperature | -15 to +90 °C | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Maximum Axial Force | 1200 N | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Maximum Radial Force | 1700 N | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Weight | 6.5 kg ±3% | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Typical Interface | L1 keyed input shaft Ø18 h6; pilot Ø88 h7 | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| IP Rating | IP65 | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
| Service Life | 20,000 h | Referenced L1, 1:1 drawing only; ratings and dimensions for other stages must be checked in their own drawings. |
Unlisted Specifications Are Pending, Confirm for the Specific Configuration.

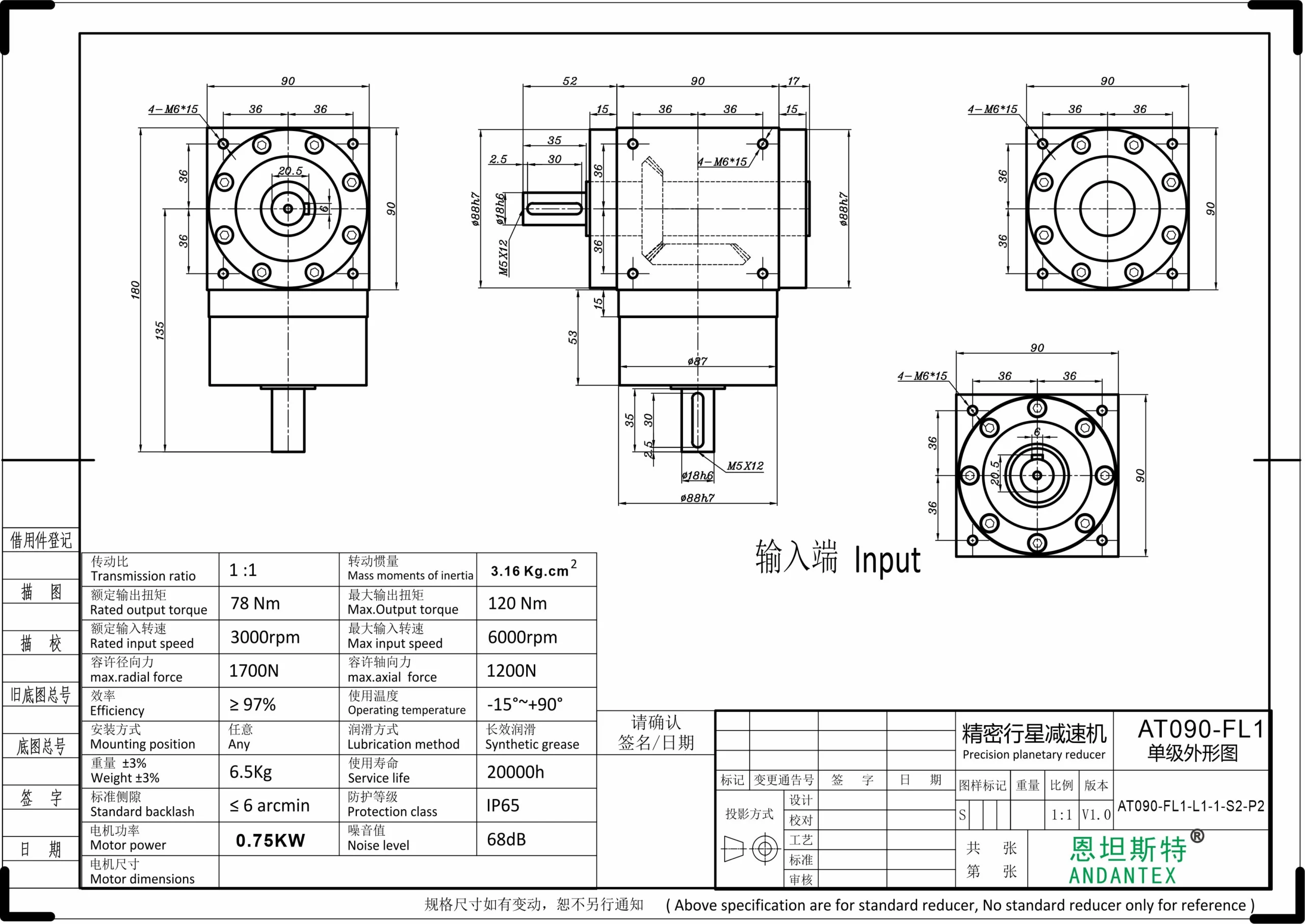

Find by Interface Dimensions AT090-FL1 Drawings
