AT140-FL1 Single-Shaft Output Right-Angle Gearbox

Name: AT140-FL1 Single-Shaft Output Right-Angle Gearbox
Brand: ANDANTEX
SKU: AT140-FL1

AT140-FL1 is a single-shaft output right-angle gearbox with a 32 mm keyed output shaft.

ANDANTEX PRODUCT

The referenced L3 motor-interface drawing provides 19, 22 and 24 mm input-bore options, a 110 mm pilot and 145 mm mounting PCD with M8 threads. It lists 150 Nm rated torque at ratios 12 and 15, and 270 Nm at ratios 16, 20, 25, 28, 35, 40, 50 and 70. Other stages and interfaces have their own dimensions and ratings. Use the matching drawing and STEP configuration when planning an automation drive, then request a quotation with motor and load details.

Submit Selection Requirements View All Sizes in This Series

AT140-FL1 Product Model

AT-FL1 Hollow Input & Single Shaft Output Product Series

12, 15, 16, 20, 25, 28, 35, 40, 50, 70 (L3) Gear Ratio

150 / 270 Nm Rated Output Torque

≤12 arcmin Backlash

4800 N Maximum Radial Force

6000 rpm Maximum Input Speed

≥92% Efficiency

Key Technical Specifications

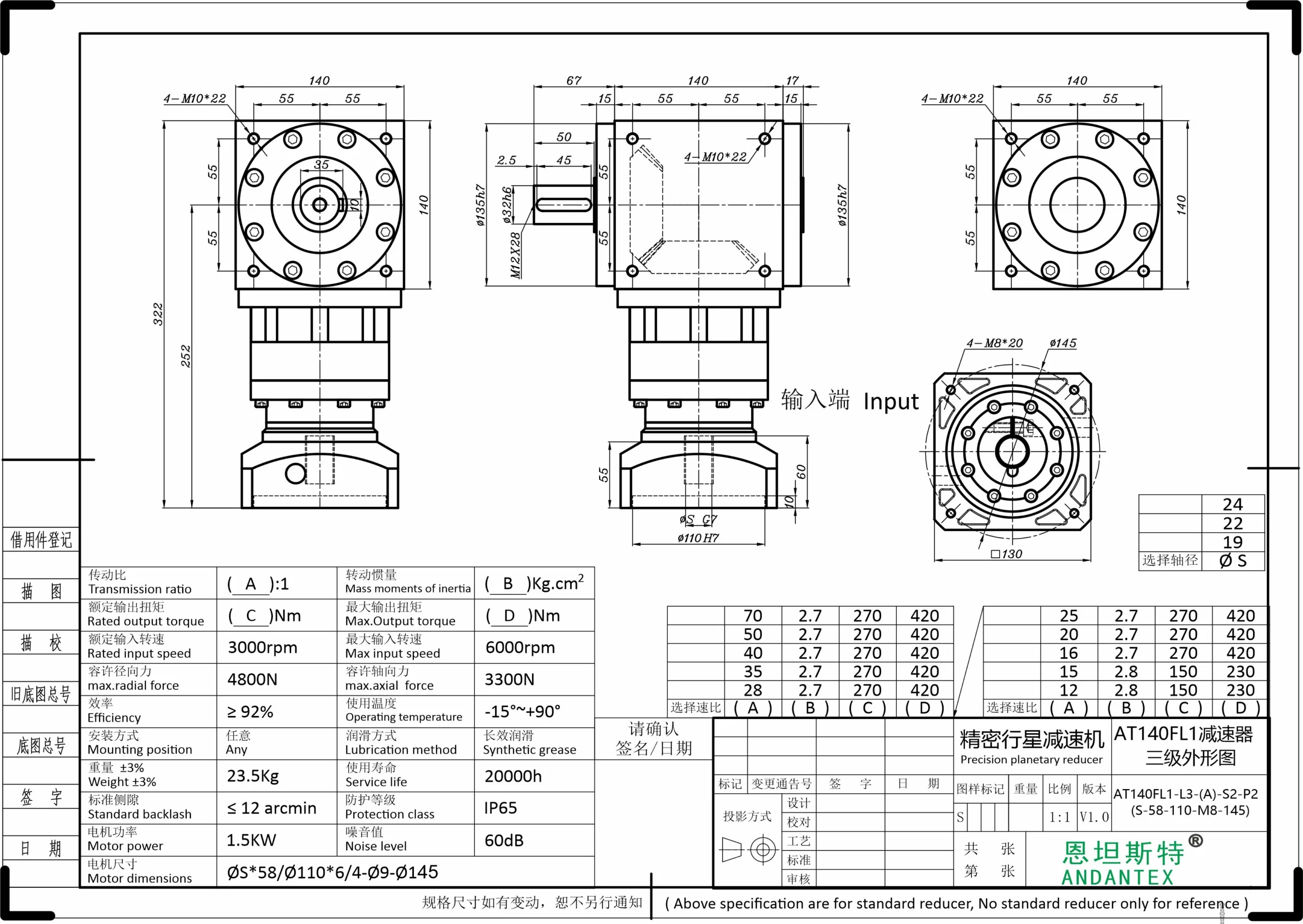

AT140-FL1-L3-S-110-145M8.jpg Technical Data SheetAT-FL1 Hollow Input & Single Shaft OutputRight Angle Gearbox

Item	Parameters	Description
Product Series	AT-FL1 Hollow Input & Single Shaft Output	Right Angle Gearbox
Specifications / Frame Size	140	Model Specifications
Output Structure / Flange Type	Single keyed output shaft at 90 degrees to the input	FL1 single-shaft output configuration; input structure and mounting interface vary by stage.
Gear Ratio	12, 15, 16, 20, 25, 28, 35, 40, 50, 70 (L3)	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Rated Output Torque	150 / 270 Nm	L3 reference: 150 Nm at ratios 12 and 15; 270 Nm at ratios 16, 20, 25, 28, 35, 40, 50 and 70.
Maximum Torque	230 / 420 Nm	L3 reference: 230 Nm at ratios 12 and 15; 420 Nm at ratios 16–70 listed on the drawing.
Backlash	≤12 arcmin	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Maximum Input Speed	6000 rpm	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Rated Speed	3000 rpm input	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Efficiency	≥92%	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Operating Temperature	-15 to +90 °C	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Maximum Axial Force	3300 N	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Maximum Radial Force	4800 N	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Weight	23.5 kg ±3%	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Typical Interface	L3: bore Ø19 / 22 / 24 mm; pilot Ø110 H7; PCD Ø145; 4×M8	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
IP Rating	IP65	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.
Service Life	20,000 h	Referenced L3, S-110-145-M8 drawing only; select the ratio and input-bore option before ordering.

Unlisted Specifications Are Pending, Confirm for the Specific Configuration.

MOTOR INTERFACE FINDER

Find by Interface Dimensions AT140-FL1 Drawings

Choose the motor interface and reduction stage that match your configuration. Each drawing and STEP file applies to its stated variant.

Find Matching Motor Interfaces across Models

Enter Motor Shaft Diameter, Pilot Diameter & Mounting Hole Spacing, Find identical or similar input interfaces across recorded models; Resources Requiring Review Are Clearly Marked.

Search Interfaces across Models Submit Interface Specifications

QUICK MATCH

Match Using Dimensions on the Motor Drawing

Filter by motor type, reduction stage and the dimensions on your motor drawing. Matching configurations show their available drawings and STEP files; missing files are marked.

Motor TypeNumber of StagesMotor Shaft DiameterLocating PilotMounting Hole Spacing PCD

Select Interface ResourcesAfter Publishing Engineering Resources, Filter by Actual Motor Dimensions.

Check the motor drawing for shaft diameter and length, keyway, pilot diameter, mounting hole spacing, threads and flange thickness.

ENGINEERING FILES

AT140-FL1 2D / 3D Engineering Resources

Choose the files for the exact model, motor interface and reduction stage. Dimensional drawings may be images or PDF; 3D models are STEP files.

0 2D + 3D File

0 Interface / Stage Combinations

0 Complete Resource Set

0 Pending Addition or Review

Loading Resources…Choose a configuration to review the available files.

No matching configuration? Submit your motor drawing

DOWNLOAD CHECK

Check the Model before Downloading, Size & Interface

Check the complete model and configuration against the approved engineering drawing. Custom inputs, outputs and flanges require their own matching files.

Request Engineering Review

Application Verification

Provide the Load, Target Output Speed, Start/Stop Cycle, Installation Space & Operating Environment, Confirm Whether This Model Is Suitable.

View Applications

FAQ

How to Verify the Motor Interface?

Check Motor Shaft Diameter, Shaft Length, Keyway, Pilot Diameter & Mounting Hole Locations, Use the Official Drawing for the Matching Configuration.

What If Specifications or Drawings Are Unavailable?

Submit the Model & Required Configuration for Engineering Review, Unpublished resources do not mean the configuration has been verified.

Need a Quote or Engineering Review?

Submit AT140-FL1 Gear Ratio for, Load & Installation Requirements.

Generate RFQ
