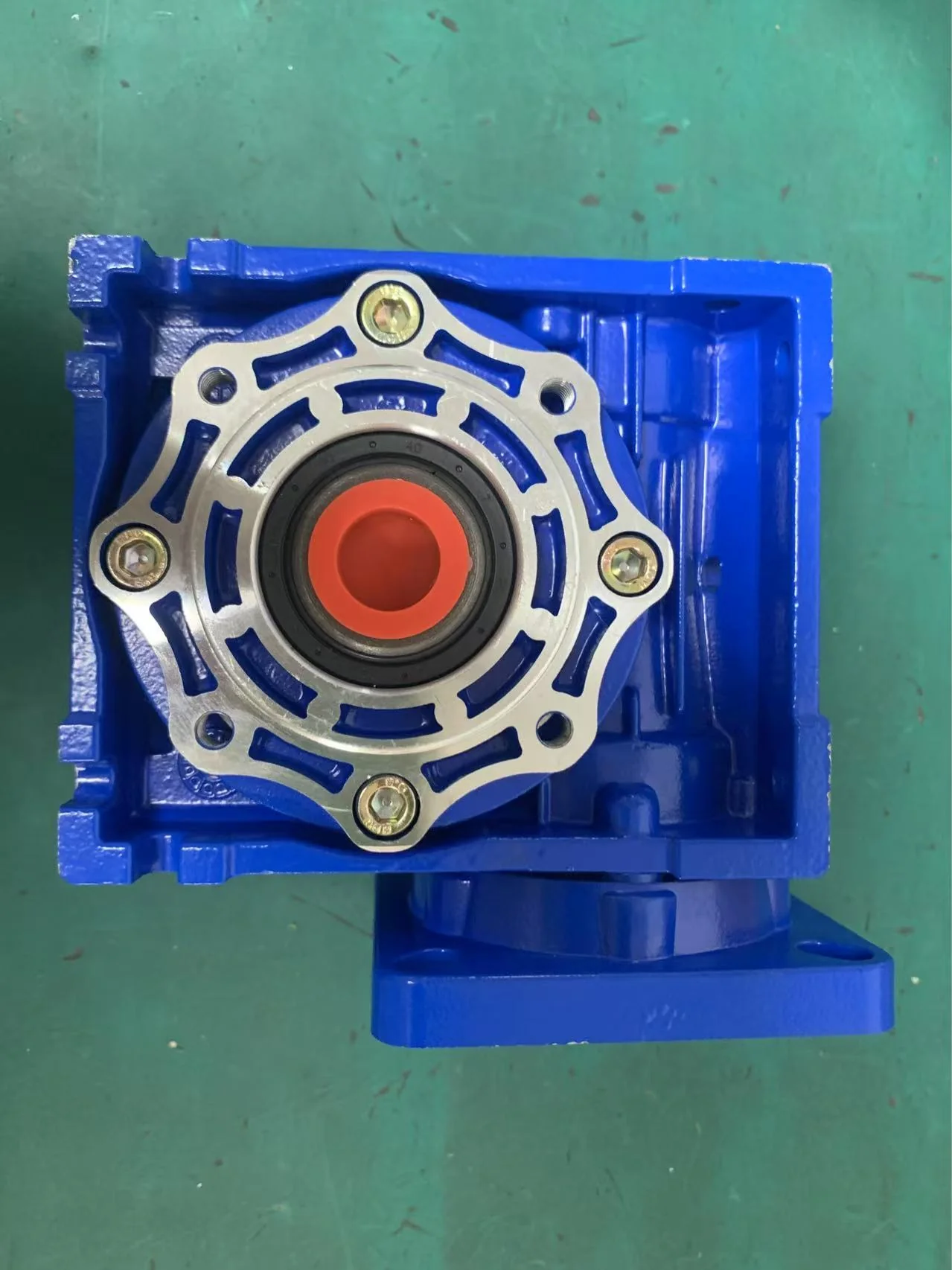

NMRV Worm Gearboxes
Compare models in this series, check their motor interfaces and find the matching drawings and STEP files.
Model / Specifications
← BackWorm Gearbox
NMRV025 Worm Gearbox
View Specifications & Resources
NMRV030 Worm Gearbox
View Specifications & Resources
NMRV040 Worm Gearbox
View Specifications & Resources
NMRV050 Worm Gearbox
View Specifications & Resources
NMRV063 Worm Gearbox
View Specifications & Resources
NMRV075 Worm Gearbox
View Specifications & Resources
NMRV30 Worm Gearbox | (RV30)
View Specifications & ResourcesSelecting an NMRV Worm Gearbox for a Machine
NMRV worm gearbox selection requires the motor connection, output arrangement and operating duty to be reviewed together. Open the model cards for size-specific resources and specify the complete required configuration when requesting a quotation.
- State the motor type, motor speed, required output speed and operating cycle. Confirm the available ratio and motor interface for the selected size.
- Provide working torque, starting conditions and any intermittent or reversing duty. Describe the mounting position and surrounding temperature for a thermal and lubrication review.
- Check output shaft or bore dimensions, mounting features and the driven connection. Include overhung loads and external support details where applicable.
If the application must hold a suspended or gravity-driven load, state that requirement explicitly and request a suitable holding arrangement. Do not treat the series name as a guarantee of self-locking.
Related guidance: worm gearbox category.
Request a Model and Drawing Review
Send the full model or series name, motor information, application layout and operating requirements. Include the required interfaces and any performance values that need confirmation.
Send your selection requirements or open the drawing and document center to review available resources.
