AT170-FH Double Keyed-Bore Output Right-Angle Gearbox
AT170-FH uses double keyed-bore outputs for a right-angle drive arrangement.
The referenced L2 35-114.3-200 drawing lists ratios 4, 5, 7 and 10, with ratio 3 marked as a secondary option. Rated torque varies by ratio; check both output loads, motor fit and mounting space against the selected drawing.
Key Technical Specifications
| Item | Parameters | Description |
|---|---|---|
| Product Series | AT-FH Double Keyed-Bore Output Gearboxes | Right Angle Gearbox |
| Specifications / Frame Size | 170 | Model Specifications |
| Output Structure / Flange Type | Double keyed-bore output | FH output structure confirmed by manufacturer; key and bore dimensions depend on configuration. |
| Gear Ratio | 4, 5, 7, 10; ratio 3 marked as a secondary option | L2 35-114.3-200 drawing only; other configurations require their own drawing. |
| Rated Output Torque | 450 Nm (4, 5); 325 Nm (7); 160 Nm (10); 185 Nm (3, secondary option) | L2 35-114.3-200 drawing only; other configurations require their own drawing. Confirm the rating basis for both output connections. |
| Maximum Torque | 878 Nm (4, 5); 750 Nm (7); 320 Nm (10); 370 Nm (3, secondary option) | L2 35-114.3-200 drawing only; other configurations require their own drawing. Confirm permissible duration and load distribution. |
| Backlash | ≤15 arcmin | L2 35-114.3-200 drawing only; other configurations require their own drawing. |
| Maximum Axial Force | 3300 N | L2 35-114.3-200 drawing only; other configurations require their own drawing. Confirm load application point and rating basis. |
| Maximum Radial Force | 4800 N | L2 35-114.3-200 drawing only; other configurations require their own drawing. Confirm load application point and rating basis. |
| Typical Interface | Input φ35 G7; pilot φ114.3 H7; PCD 200 mm, 4-M12; double φ40 H7 keyed output | L2 35-114.3-200 drawing only; other configurations require their own drawing. |
Unlisted Specifications Are Pending, Confirm for the Specific Configuration.
Find by Interface Dimensions AT170-FH Drawings
Choose the motor interface and reduction stage that match your configuration. Each drawing and STEP file applies to its stated variant.
Enter Motor Shaft Diameter, Pilot Diameter & Mounting Hole Spacing, Find identical or similar input interfaces across recorded models; Resources Requiring Review Are Clearly Marked.
Match Using Dimensions on the Motor Drawing
Filter by motor type, reduction stage and the dimensions on your motor drawing. Matching configurations show their available drawings and STEP files; missing files are marked.

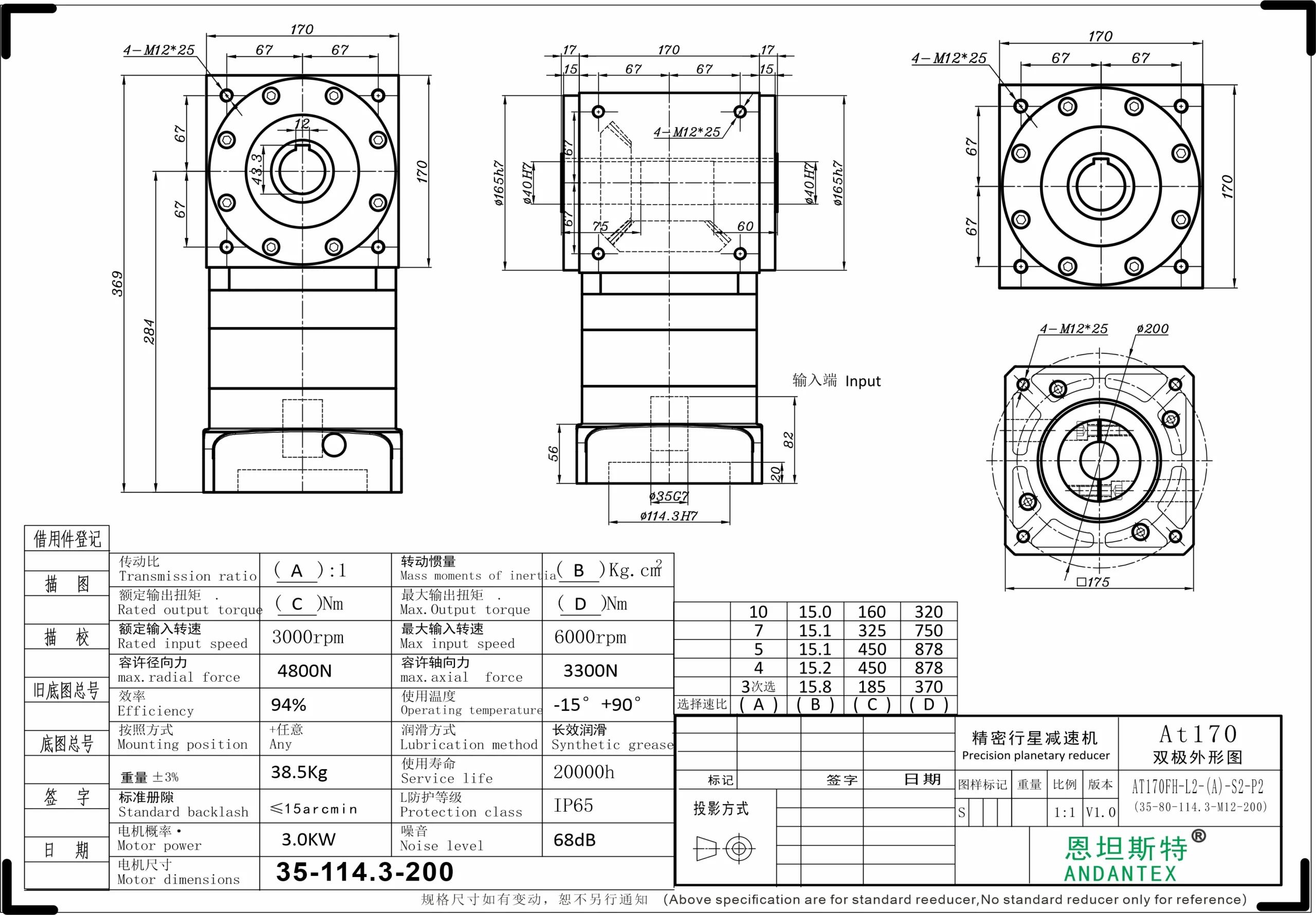

AT170-FH 2D / 3D Engineering Resources
Choose the files for the exact model, motor interface and reduction stage. Dimensional drawings may be images or PDF; 3D models are STEP files.
Check the Model before Downloading, Size & Interface
Check the complete model and configuration against the approved engineering drawing. Custom inputs, outputs and flanges require their own matching files.
Application and Drive-Layout Selection
AT170-FH provides double keyed-bore output in a right-angle transmission layout. For robot peripheral axes, lithium-battery production equipment, semiconductor handling and vision-inspection mechanisms, review the actual motion cycle, installation envelope, cleanliness requirements and positioning target before selecting a configuration.
Match the Gearbox to the Driven Mechanism
- Timing belt: provide pulley diameter, belt tension, acceleration and the distance from the pulley load to its support. Check torque and radial load together. Compare PLF when an inline arrangement is suitable.
- Rack and pinion: provide pinion pitch diameter, travel force, speed and reversal accuracy. Compare PAG or PLX for an inline helical-gear solution; choose a right-angle layout only after checking the required shaft arrangement and backlash.
- Ball screw: provide screw lead, axial thrust, moving mass and support-bearing arrangement. Compare PLF or PAG for inline drive options.
- Direct connection: match shaft or bore diameter, keyway or locking-ring interface, engagement length, alignment and external bearing support to the exact drawing.
For a double-output arrangement, report the load on both sides. Confirm whether each stated torque or force limit applies to one connection or the complete gearbox; ratings from a different series must not be transferred.
